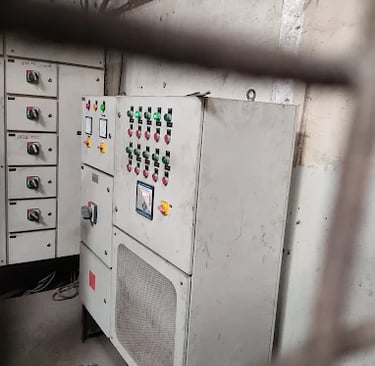

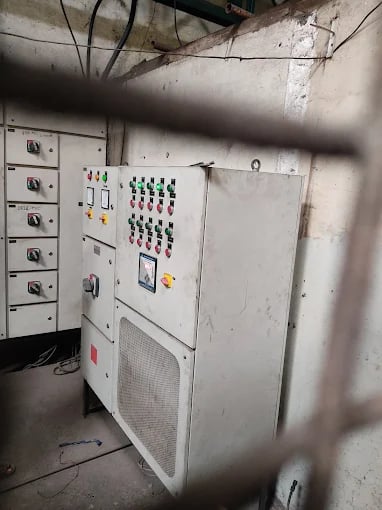

APFC Panel

Key Features

1. Thyristor-Based Switching

   • Fast and reliable capacitor bank switching without transients, ideal for dynamic loads.

2. Reactor-Based (Detuned) Design

   • Integrated reactors prevent harmonic resonance and protect capacitors from harmonic distortion.

3. Modular Design

   • Flexible panel layout allows easy maintenance and future expansion.

4. Automatic Control

   • Equipped with intelligent microprocessor-based APFC relays for real-time power factor correction.

5. Custom kVAR Ratings

   • Designed as per customer load requirements – from small setups to large industrial loads.

6. Heavy-Duty Components

   • Use of premium capacitors, contactors, reactors, and cooling systems for long service life.

7. Safety & Compliance

   • Panels follow IEC standards and include overload protection, earthing, and proper ventilation.

Technical Specifications:

1. Voltage Rating : 415V , 525 V AC, 3 Phase, 50 Hz

2. kVAR Range : Custom from 20 kVAR to 1000+ kVAR

3. Switching Type : Thyristor / Contactor (as required)

4. Harmonic Filtering : Detuned Reactors (typically 7%, 14%)

5. Panel Type : Indoor / Outdoor (IP42–IP55)

6. Control Relay : Intelligent APFC Relay (6/12/16 steps)

7. Cooling : Natural / Forced Air Cooling

8. Standards : IEC 61439, IS 13585

About APFC Panel

We are a leading manufacturer of Automatic Power Factor Correction (APFC) panels, offering solutions from 440V to 11kV and 20 kVAr to 1000+ kVAr and above. Each project begins with a customized load analysis to ensure accurate sizing and compatibility with site conditions.

Every design is site-conducted, performance-verified, and custom-engineered to deliver reliable and long-term performance. With a growing base of 100+ satisfied customers, we pride ourselves on quality, safety, and service.
